320 MCR | 400 MCR | 500 MCR

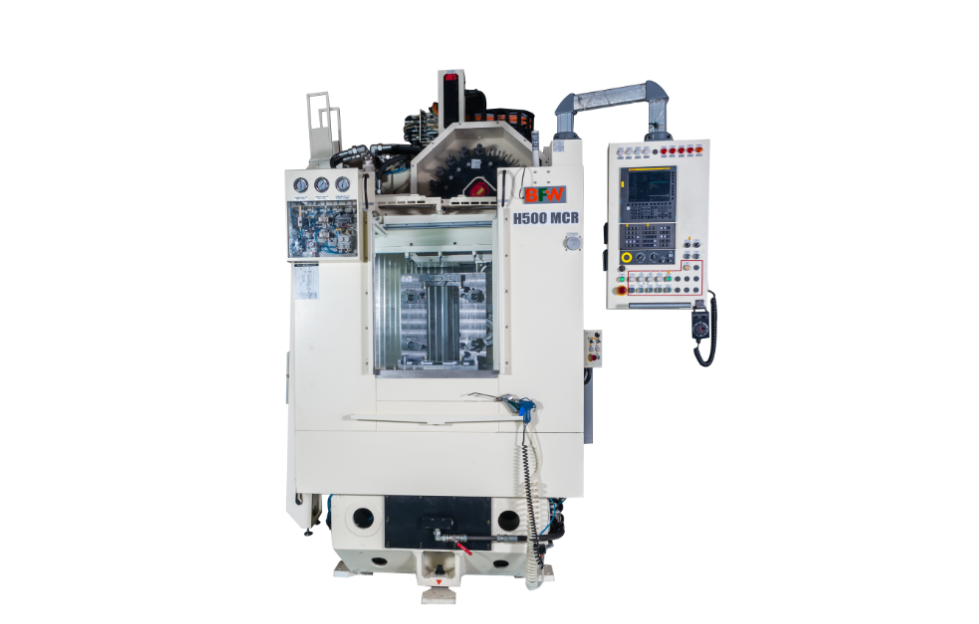

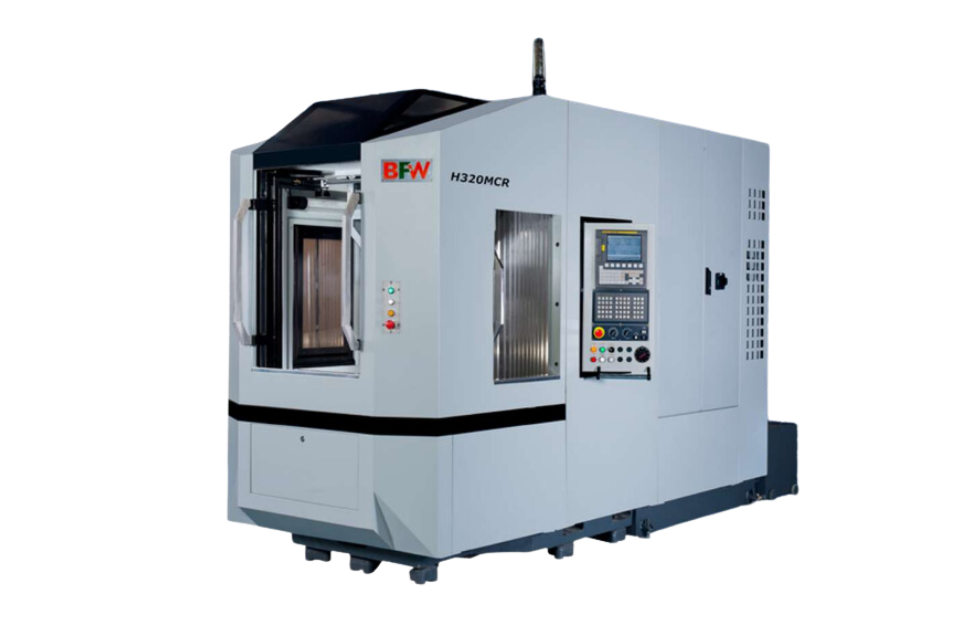

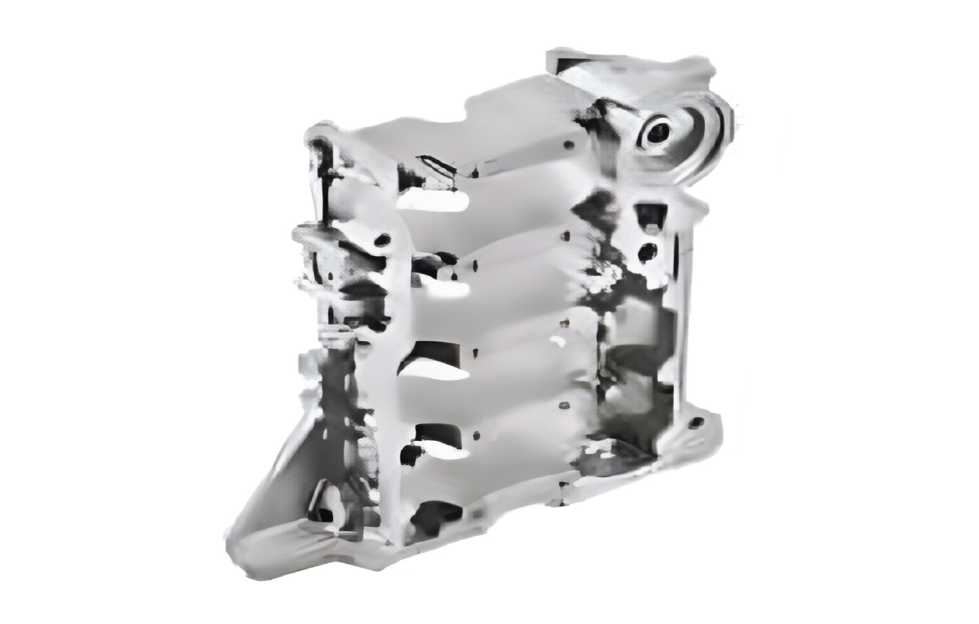

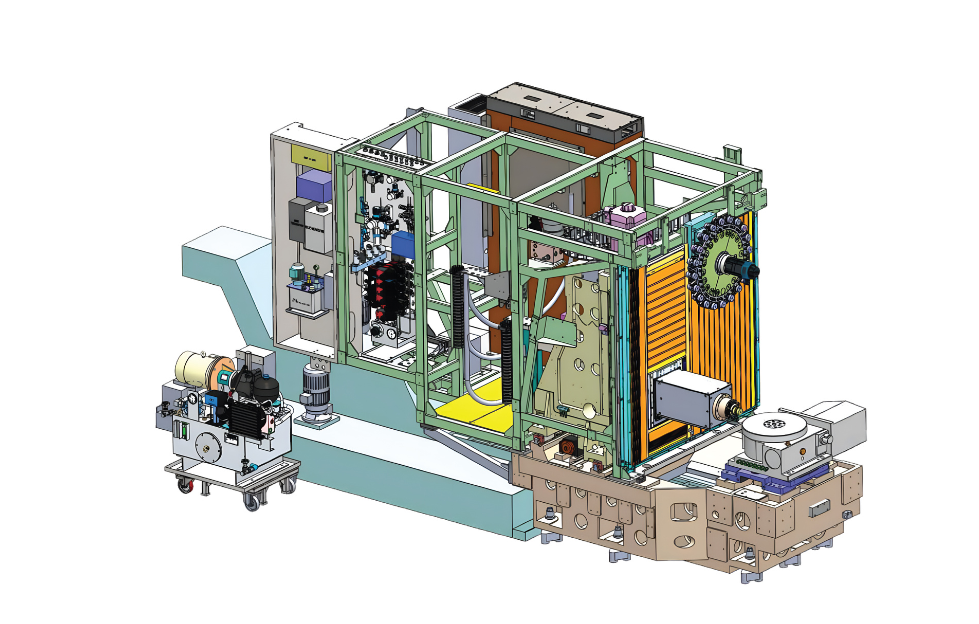

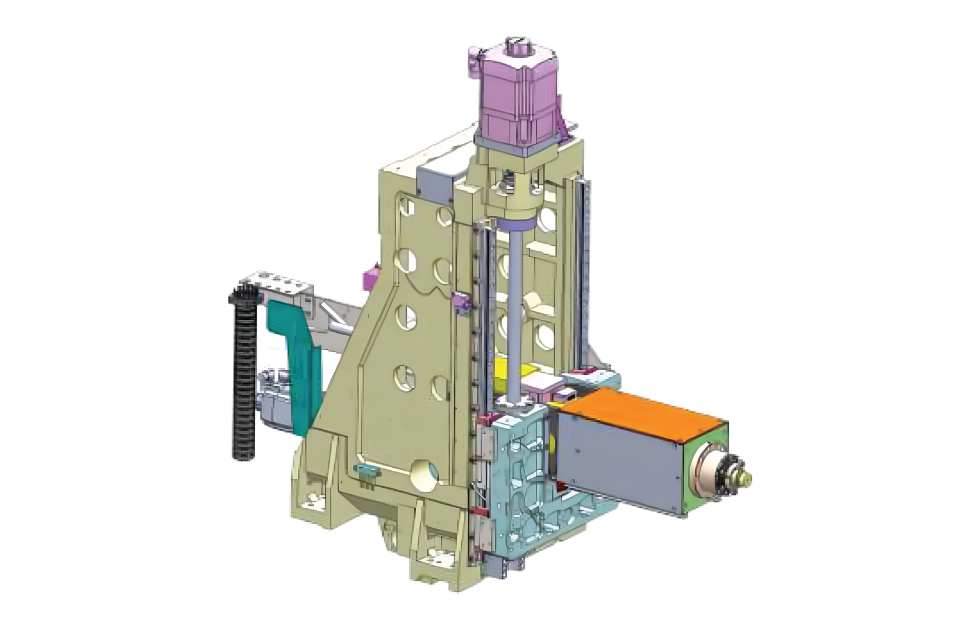

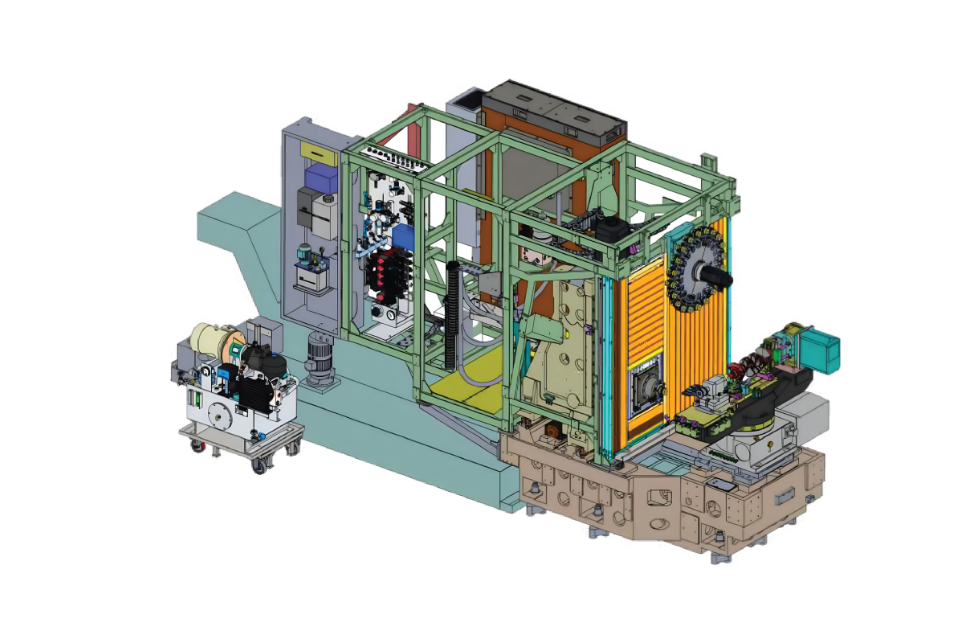

MCR, High speed Horizontal Machining Centers offer high speed, precision, flexibility, compact foot print and energy saving benefits. MCR is specially built to meet your requirement of machining power train components of passenger cars and light commercial vehicles. The fast, flexible and compact MCR comes to you with many advantages.
Have Any Questions?
Let us tell you more about MCR. Feel free to reach out to us anytime.
To match the demand for greater accuracy and total reliability at higher speeds, BFW has developed XTRON Series Vertical Machining centers. These machines are rigid base C-type machines with moving tables for easy access. The high dynamic structure supports rapid axis take-offs with a higher acceleration.

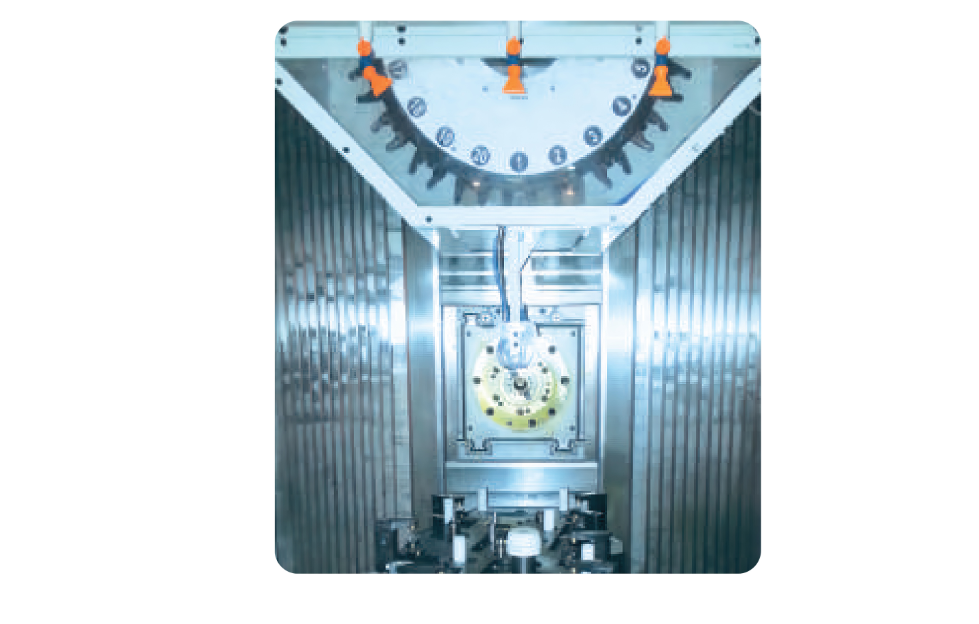

MCR | H 320 MCR | H 400 MCR | H 500 MCR |
|---|---|---|---|
Pallet size (mm × mm) | Dia 320 (Dia 400) | Dia 400 (Dia 500) | Dia 500 |
Pallet type | Tapped holes | Tapped holes with butting pads | Tapped holes with butting pads |
Maximum load on table (kg) | 300 | 400 | 500 |
Pallet height from ground level (mm) | 950, with 100 mm ground clearance | 1200, with 100 mm ground clearance | 1080, with 100 mm ground clearance |
Maximum job swing – diameter × height (mm) | 700 × 500 | 560 × 500 (800 × 500) | 700 × 700 (900 × 700) |
Index positions (°) | 360 × 1° (360000 × 0.001°) | 360 × 1° (360000 × 0.001°) | 360 × 1° (360000 × 0.001°) |
X / Y / Z (mm) | 500 / 350 / 350 | 500 / 400 / 400 | 500 / 550 / 500 |
Table centre – spindle centre distance (mm) | 100 – 450 | 100 – 500 | 170 – 720 |
Table centre – spindle face distance (mm) | 100 – 450 | 100 – 500 | 200 – 700 |
Rapid traverse X / Y / Z axis (m/min) | 60 | 50 | 50 |
Spindle (Standard) Power cont./int. (kW) | 3.7 / 5.5 / 7.5 / 11 | 5.5 / 7.5 (7.5 / 11) | 5.5 / 7.5 (7.5 / 11) |
Spindle (Standard) Speed (max, rpm) | 8000 (10000 / 12000) | 8000 (10000) | 8000 (10000) |
Spindle (Standard) Taper type | BT 30 (HSK A50) | BT 40 (HSK A63) | BT 40 (HSK A63) |
Spindle (Standard) Maximum torque (Nm) | 35 with Siemens (58 with Mitsubishi) (70 with Fanuc) | 57 with Siemens (70 with Mitsubishi / Fanuc) | 57 with Siemens (70 with Mitsubishi / Fanuc) |
Spindle – High Torque (with Fanuc only) Power cont./int. (kW) | NA | NA | 22 / 37 (15% ED) |
Spindle – High Torque (with Fanuc only) Speed (max, rpm) | NA | NA | 14000 |
Spindle – High Torque (with Fanuc only) Taper type | NA | NA | HSK A63 |
Spindle – High Torque (with Fanuc only) Max torque (Nm) | NA | NA | 250 |
Automatic Tool Changer Pull stud | As per MAS-403 P30T-1 | As per DIN 69872 | As per DIN 69872 |
Automatic Tool Changer Number of tools | 20 | 20 | 20 |
Automatic Tool Changer Max tool diameter (mm) | 80 | 80 / 125 | 80 / 125 |
Automatic Tool Changer Max tool length (BT – HSK) (mm) | 200 (300) | 250 (350) | 320 |
Automatic Tool Changer Max tool weight (kg) | 4 | 5 | 6 |
Automatic Tool Changer Tool changing time (tool-to-tool) (sec) | 2.4 | 2.5 | 2.5 |
Automatic Tool Changer Chip-to-chip time (sec) | 3.9 | 4.0 | 5.0 |
Accuracy (ISO 230-2) Linear axes positioning (mm) | 0.010 | 0.010 | 0.010 |
Accuracy (ISO 230-2) Linear axes repeatability (mm) | 0.007 | 0.007 | 0.007 |
Accuracy (ISO 230-2) B Axis positioning (arc sec) | 8 (25) | 8 (25) | 8 (25) |
Accuracy (ISO 230-2) B Axis repeatability (arc sec) | 6 (15) | 6 (15) | 6 (15) |
Machine weight (kg) | 5500 | 6500 | 8500 |
Total connected load (kVA) | 25 | 45 | 55 |
Dimensions (L × W × H, mm) | 1,400 × 4,200 | 1,700 × 4,650 | 1,900 × 4,100 |
Compressed air (bar) | 6 | 6 | 6 |
Power supply | 415 V AC, 50 Hz, 3 Phase | 415 V AC, 50 Hz, 3 Phase | 415 V AC, 50 Hz, 3 Phase |
CNC System | Siemens 828D / Mitsubishi M80 / Fanuc Oi MF | Siemens 828D / Mitsubishi M80 / Fanuc Oi MF | Siemens 828D / Mitsubishi M80 / Fanuc Oi MF |
Excellent precision with the use of high-precision components and thermo-friendly features.
High speed, precision, flexibility, compact footprint and
energy saving benefits.
