H 4000 | TH 4000 | H 5500 | TH 5500 | H 5500-50 | TH 5500-50 | H 6600 | H 8000 | H 8800 | H 10000 | H 12000H | 1250HP

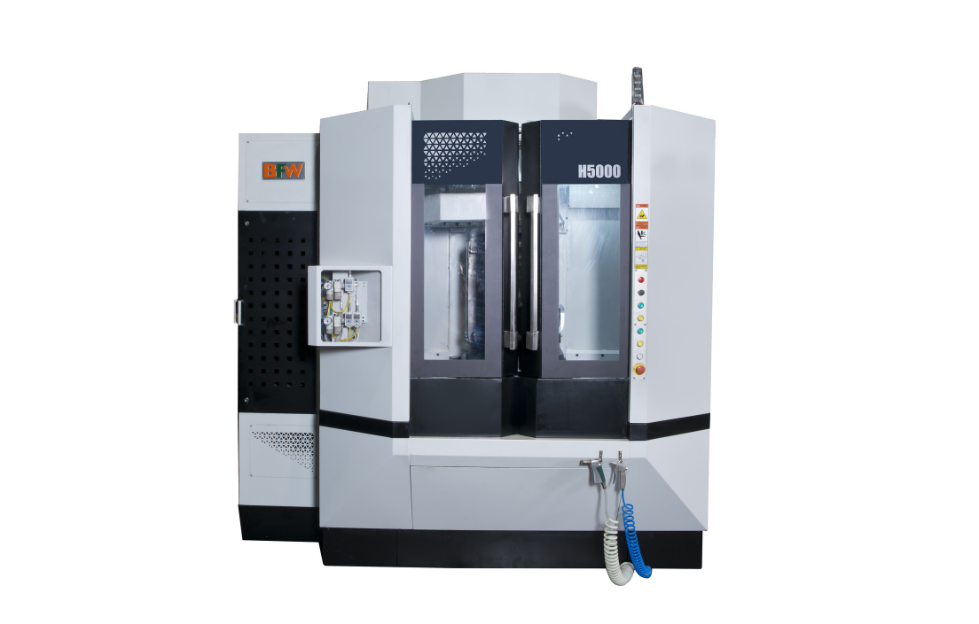

ORION horizontal machining centers are designed and manufactured to deliver excellent machine precision with the use of high precision components and thermo-friendly features.
Horizontal machine
Have Any Questions?
Let us tell you more about Orion. Feel free to reach out to us anytime.

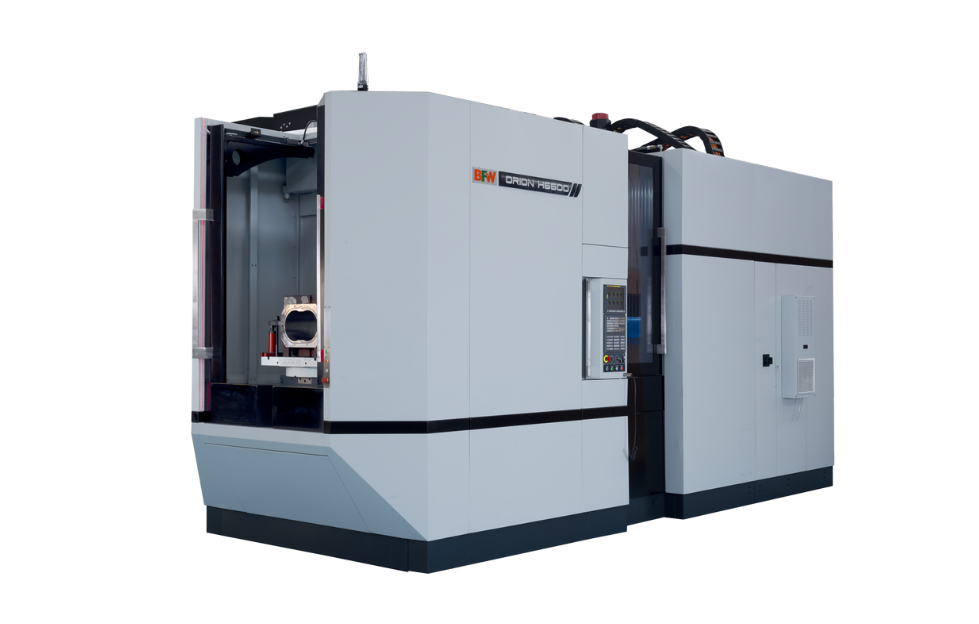

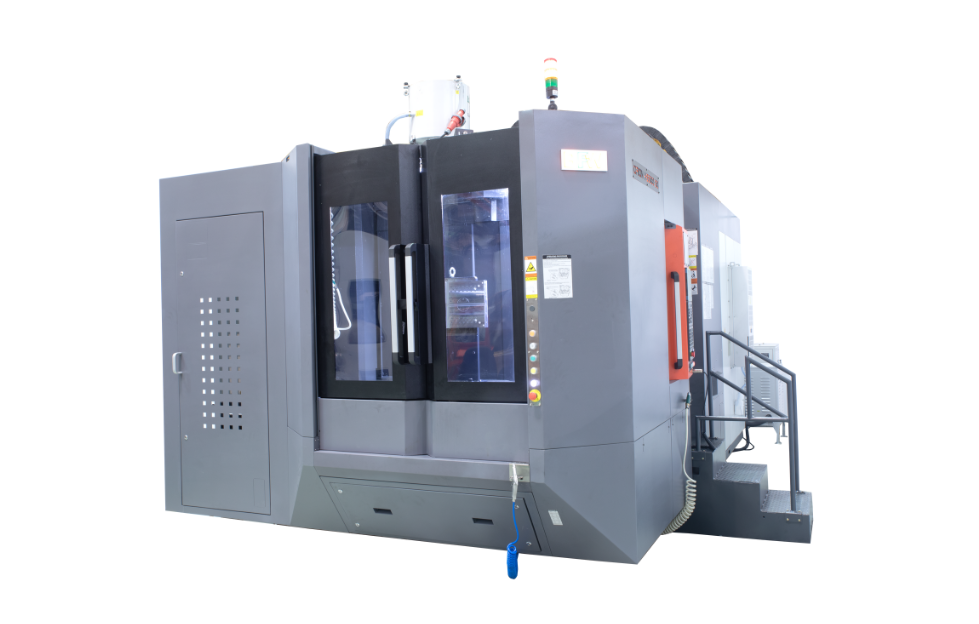

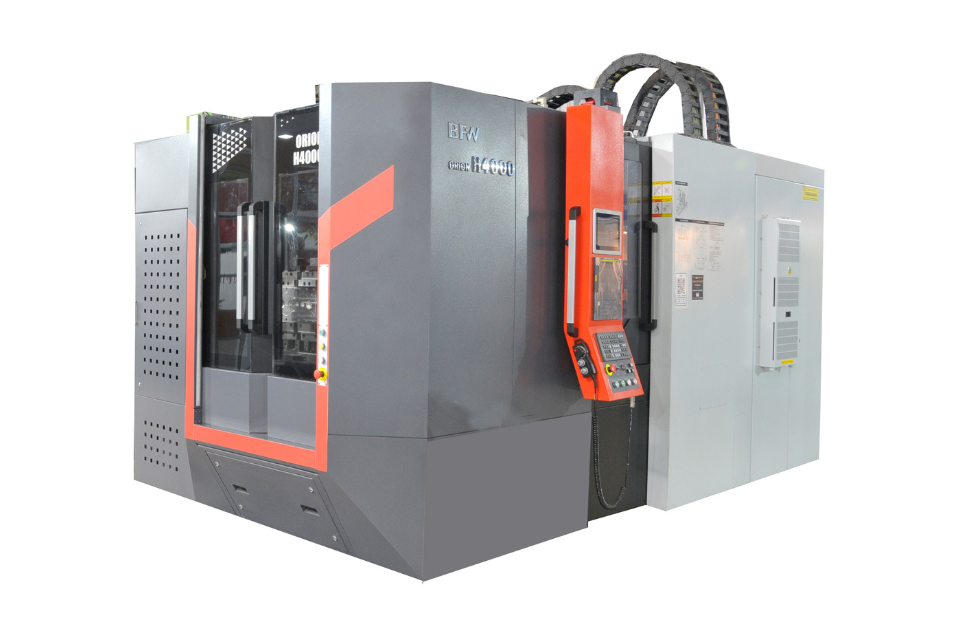

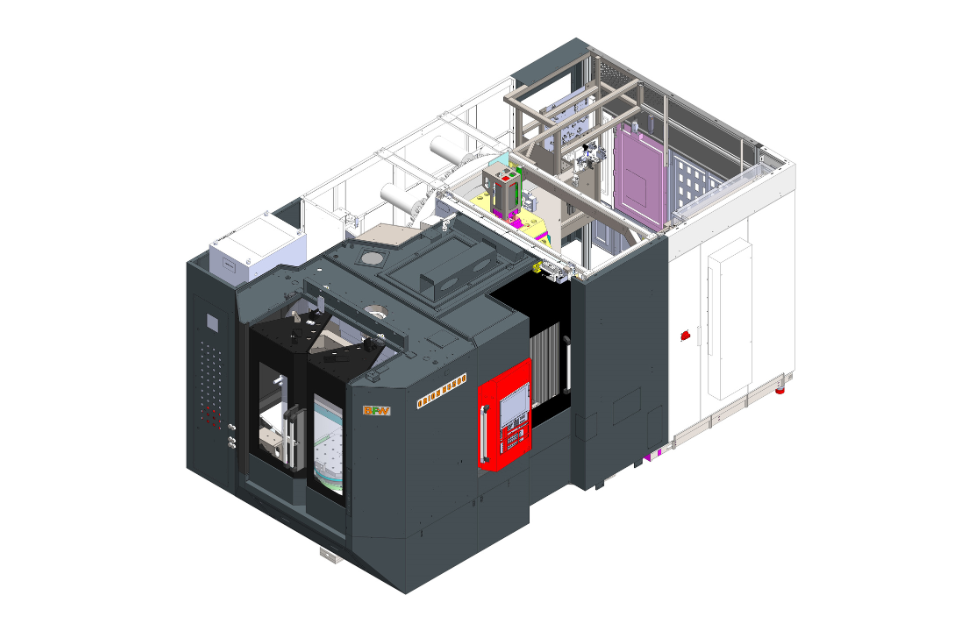

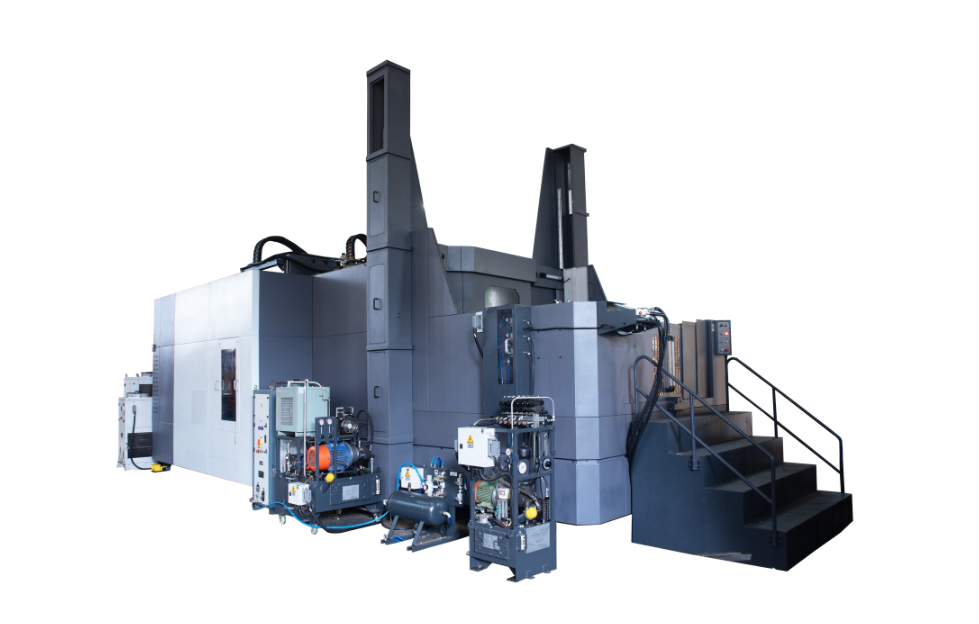

Orion | H 4000 | H 5500 | H 5500-50 | H 6600 |
|---|---|---|---|---|
Pallet (mm) | 400 × 400 | 500 × 500 | 500 × 500 | 630 × 630 |
Spindle Taper | BT 40 (HSK A63) | BT 40 (HSK A63) | BT 50 (HSK A63) | BT 50 (HSK A63) |
Axis Traverse (X / Y / Z mm) | 600 / 560 / 600 | 800 / 800 / 800 | 800 / 800 / 800 | 1000 / 1000 / 1000 |
Rapid Rate (mm/min) | 60000 | 60000 | 60000 | 60000 |
Orion | H 8000 | H 8800 | H 10000 | H 12000 |
|---|---|---|---|---|
Pallet (mm) | 800 × 800 | 800 × 800 | 1000 × 1000 | 1250 × 1000 |
Spindle Taper | BT 50 (HSK A63) | BT 50 (HSK A63) | BT 50 (HSK A63) | BT 50 (HSK A63) |
Axis Traverse (X / Y / Z mm) | 1250 / 1000 / 1000 | 1400 / 1200 / 1350 | 1600 / 1400 / 1400 | 2000 / 1400 / 1400 |
Rapid Rate (mm/min) | 60000 | 40000 | 40000 | 40000 |
Orion | 1250HP |
|---|---|
Pallet (mm) | 1250 × 1250 |
Spindle Taper | BT 50 (HSK A63) |
Axis Traverse (X / Y / Z mm) | 1400 / 1200 / 1300 |
Rapid Rate (mm/min) | 40000 |
Excellent precision with the use of high-precision components and thermo-friendly features.
High speed, precision, flexibility, compact footprint and
energy saving benefits.
Contact us online or join us at one of our events to explore potential partnerships and collaborations. Our custom solutions are manufactured using cutting-edge technologies and the latest methodologies.
Orion Series is BFW Europe’s high-performance horizontal machining center platform engineered for production environments where repeatability, cycle time efficiency, and long-term stability matter. Orion horizontal machining centers are designed and manufactured to deliver excellent machine precision using high-precision components and thermo-friendly features.
A horizontal machining center (HMC) is often chosen when you want to machine multiple faces in fewer setups, improve chip evacuation, and keep the spindle cutting longer using a pallet workflow. Orion builds on those HMC advantages with a production-focused structure, thermal stability measures, and fast machine dynamics designed to shorten cycle times.
Orion is positioned as one of the latest generations of BFW high-speed horizontal machining centers, developed through Germano-Indian cooperation. The goal is simple: deliver modern productivity and precision in a platform designed for global production requirements.
In real production, chip control isn’t a “nice to have”—it affects surface finish, tool life, and process stability. Orion highlights a dedicated bedframe design and chip management approach aimed at mass production applications, supporting cleaner machining conditions across long runs.
Thermal drift is one of the biggest hidden risks in long-cycle machining and multi-shift production. Orion emphasizes high-end thermal stability through ball screw cooling and thermo-friendly design features, supporting more consistent positioning and repeatability as the machine warms up and runs continuously.
Orion is positioned for high dynamics in both axis motion and the tool changer. In production terms, this supports faster positioning, reduced “in-between” time, and improved overall throughput—especially on multi-operation prismatic parts.
Orion includes a rotary-type automatic pallet changer as part of its production-oriented approach. A pallet workflow helps reduce idle time between parts by allowing setup/loading to happen in parallel with machining—supporting predictable output in medium to high-volume environments.
Orion is designed with a production-ready base configuration that supports stable machining, repeatability, and daily shopfloor reliability.
Rigidity and motion foundation: roller-type guideways and precision ball screws support controlled motion and stable cutting performance.
Repeatability and reliability essentials: absolute encoders, centralized lubrication, and servo-driven axes support consistent positioning and dependable daily operation.
Cleaner tool interface and smoother cycles: features like spindle taper air blast, coolant routines, and washing functions support cleaner operation, consistent tool seating, and less interruption during longer shifts.
Production workflow readiness: chip handling, safety interlocks, energy saving functions, and a rotary-type automatic pallet changer support a practical shopfloor routine.
CNC control platform: Fanuc 0iMF+ is included as part of the standard configuration.
Thermal stability support: ballscrew core cooling for all three axes supports more stable performance in long-cycle and continuous production work.
Optional features matter most when they remove a real production bottleneck—chip evacuation in deep features, tool capacity limits, setup time, or scrap risk.
High-pressure coolant through spindle (16 bar / 40 bar): supports chip evacuation in deeper features, improves cooling at the cutting edge, and helps stabilize tool life in drilling-heavy and chip-prone geometries.
Tool magazine capacity expansion: options such as larger tool magazines are valuable when you run multiple part families, use specialised tooling, or want sister tools for longer unattended runs.
Accuracy and compensation options: linear scales and thermal compensation sensors are commonly selected when tighter tolerance control and repeatability over long production cycles are priorities.
In-process measurement: a measuring probe supports faster setup work, repeatable datum finding, and verification—reducing scrap risk and helping standardize outcomes across operators.
Rotary and fixture integration: options like a direct drive rotary table, hydraulic fixture connections through a rotary distributor, and collision detection support more robust multi-face machining and safer operation.
Tool monitoring and shopfloor protection: iToolCaptain tool monitoring helps strengthen process security by improving visibility into tool conditions and reducing the risk of unexpected failures.
Orion highlights four outcomes that matter to buyers and operators:
Precision for repeatable machining results
Productivity for shorter cycle times and higher spindle utilization
Ergonomics for smoother daily operation and usability
Reliability for stable output across long production runs
Orion is designed for production machining where multi-face work, repeatability, and chip control are critical.
Common application fit includes:
Automotive and mobility components where throughput and repeatability matter
Aerospace and general engineering prismatic parts requiring stable multi-face machining
Energy, off-road, and heavy engineering components where chip management and long-cycle stability support consistent output
High-mix production environments where tool capacity, probing, and pallet workflow improve flexibility and uptime
Orion Series is a production-focused horizontal machining center platform built to deliver stable precision, thermo-friendly performance, and faster cycle times through high dynamics and a pallet workflow. If you’re evaluating an HMC for repeatable multi-face machining with predictable throughput and strong process stability, Orion is designed to support that production reality.
