Hydraulic Turret-type

VTL H series, built for heavy industries like oil & gas, earthmoving, and automotive, features cast iron bed, box construction, heavy spindle, hydraulic turret, and wide guideways, ensuring stability, accuracy, and vibration-free machining of large-diameter components.

Watch Hydraulic Turret-type in Action!

Hydraulic Turret-type

Download product brochure

Product enquiry

Have Any Questions?

Let us tell you more about Hydraulic Turret-type. Feel free to reach out to us anytime.

Standard Features

12 station Hydraulic Turret
Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
Safety door interlock
AC unit for electrical cabinet
Hydraulic power pack with float level switch
Heavy-duty LM guides for X & Z-axis

Unique Features

High Rigid Structure, Base, and sub-assembly parts
Extensive series range
Rapid traverse rates of 20 m/min reduce cycle times. Linear motion guide-ways on the X & Z axes ensure better positioning and repeatability.
Heavy-duty spindle, high speed bi-directional hydraulic turret assures vibration-free cutting
Wide access to the chuck zone facilitates ease of loading and unloading of parts.

Optional Features

Chip conveyor ( slat for steel or scraper for cast Iron)
Two speed gear-box is an optional feature available for 800 H, 900 H, 1250 H machines
Fixture tooling and prove out of the component
High power spindle 22/30 kW ( Not applicable with 2-speed gearbox)
High column (220 mm for higher daylight area in lieu of STD column) for 800 H, 900 H, 1250 H machines
Machine color as per customer requirement
Inch or metric serration chuck as per customer requirement
Auto door, Extra set of jaws, boring sleeves, and MT sleeves

Specification Details

To meet the requirements of heavy engineering industries such as Oil & Gas, Earth Moving, and Automobile, VTL H series machines deliver their best-graded cast iron bed and column assuring thermal stability and better machine life accuracy along with great rigidity, strength, and performance. Box type construction, heavy-duty spindle, high-speed bi-directional hydraulic turret, and wider guide ways assure vibration-free cutting. VTL finds its wide application for machining of bigger diameter heavy components like valve body, motor body, break drum, disc brake, etc.

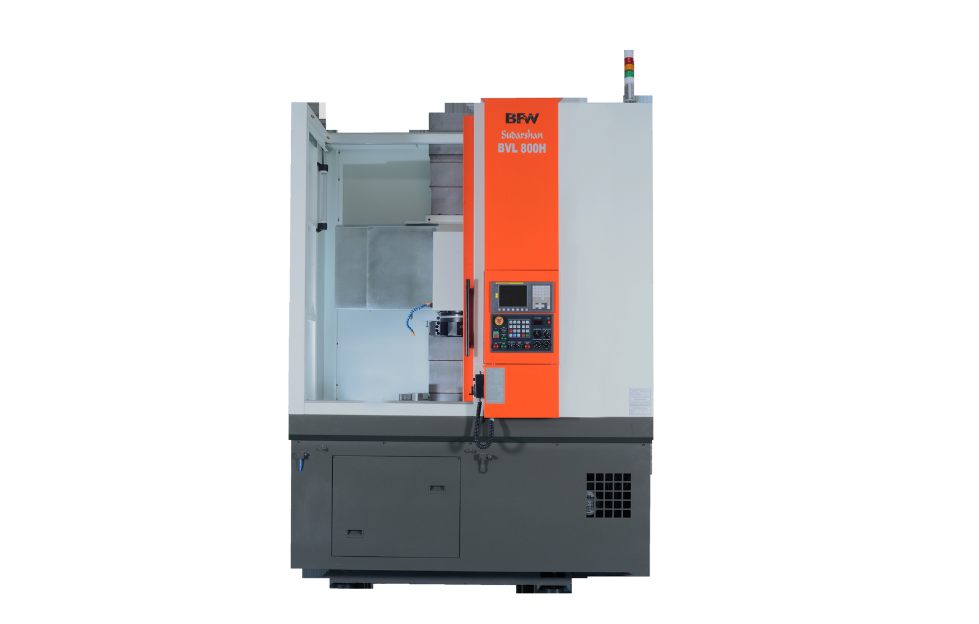

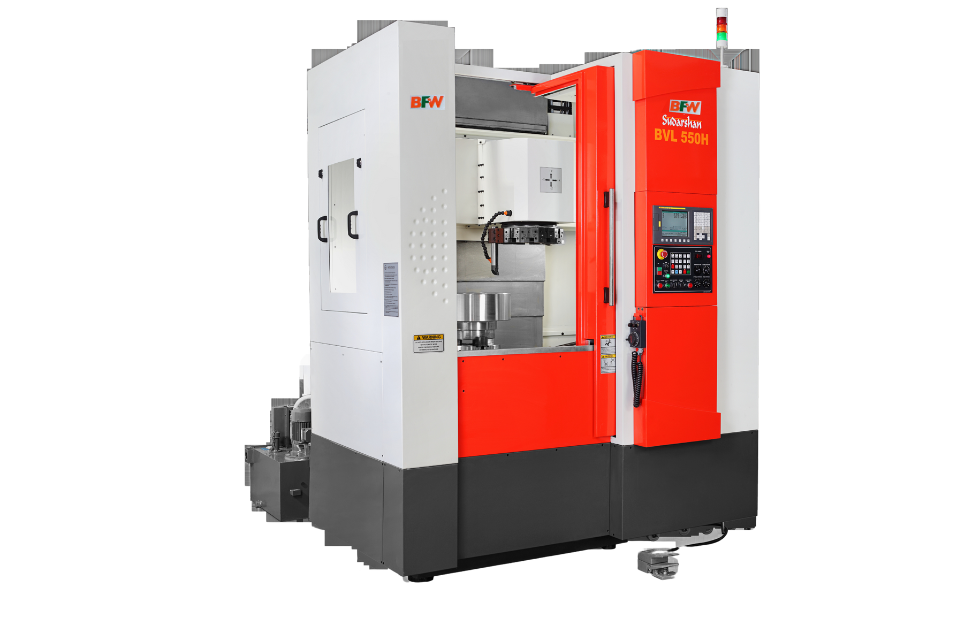

Turret Series	BVL 500 H	BVL 550 H	BVL 700 H	BVL 800 H
Swing diameter (mm)	650	650	800	1100
Maximum turning diameter (mm)	500 (for 100 mm length)	550 (for 100 mm length)	640 (for 100 mm length)	820 (for 150 mm length)
Standard turning diameter (mm)	400	450	600	600
Maximum turning length (mm)	500	700	700	850
Spindle nose	A2-8	A2-8	A2-11	A2-11
Working volume (mm, H × D)	400 × 500	450 × 700	640 × 700	600 × 850

Turret Series	BVL 900	BVL 1250 H
Swing diameter (mm)	1100	1350
Maximum turning diameter (mm)	900 (for 150 mm length)	1250 (for 150 mm length)
Standard turning diameter (mm)	800	800
Maximum turning length (mm)	800	800
Spindle nose	A2-11	Geared spindle
Working volume (mm, H × D)	800 × 800	800 × 800
