Mach 32 | Mach 54

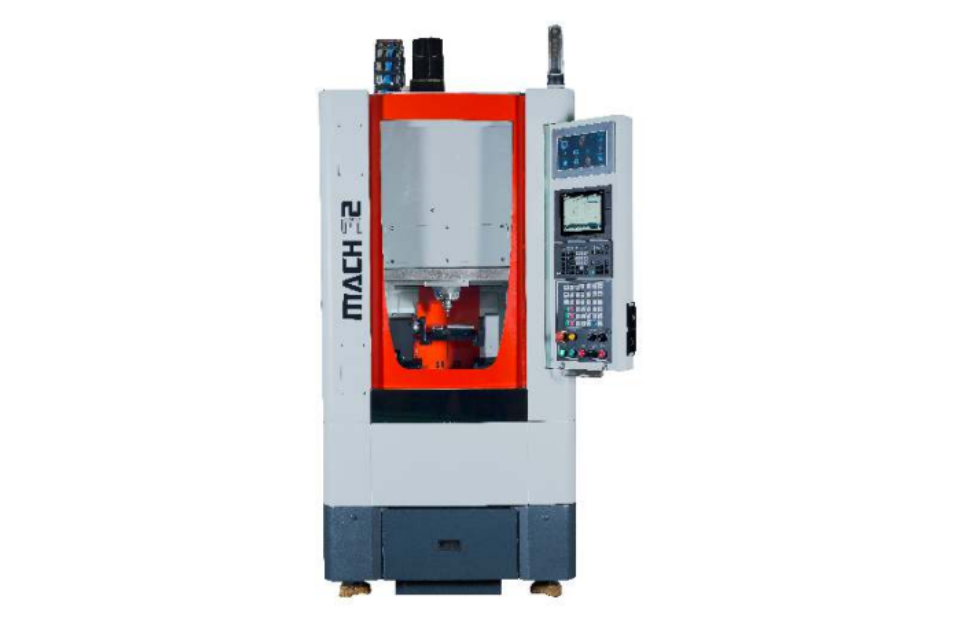

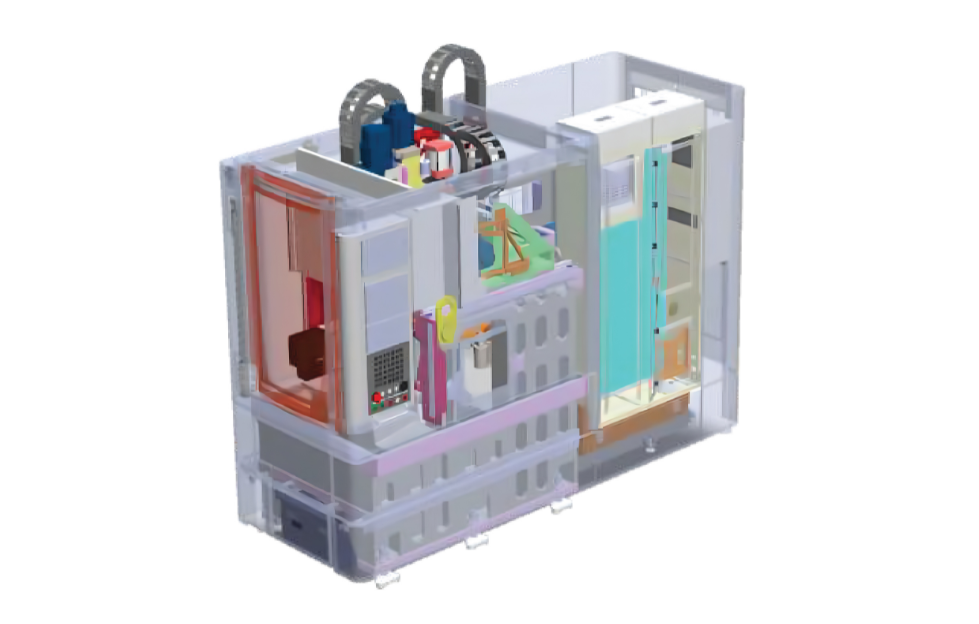

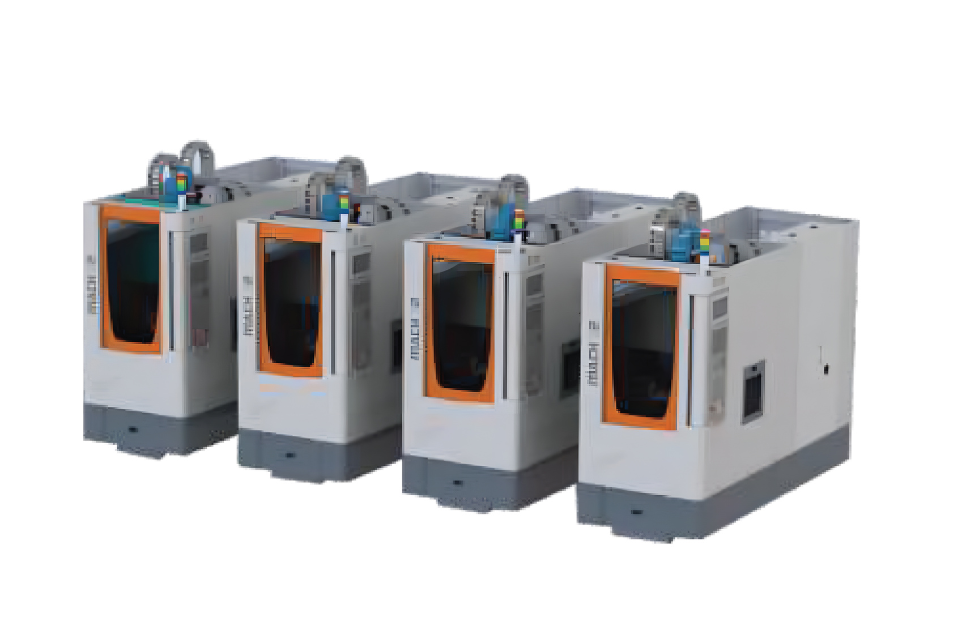

Mach is a futuristic, highly productive, compact VMC built for efficient machining of high-volume small parts. With its narrow body design, it integrates seamlessly into machining lines and cells, while front and rear accessibility of machine elements ensures minimum spacing between machines.
Have Any Questions?
Let us tell you more about Mach. Feel free to reach out to us anytime.
Mach | Mach 32 | Mach 54 |
---|---|---|
Long/Trans/Vert – X/Y/Z (mm) | 350 × 250 × 250 | 500 × 400 × 400 |
Spindle nose to table top min/max (mm) | 150 – 400 | 180 – 580 |
Table height from the floor (mm) | 880 | 810 |
Rapid traverse X / Y / Z (m/min) | 60 / 60 / 60 | 50 (50 / 60) |
Spindle taper | BT 30 (BBT30 / HSKA50) | BT 30 (BBT30 / HSKA50) |
Power, cont./S2 10 min (kW) | 2.2 / 3.7 | 5.5 / 7.5 – Mitsubishi |
3.7 / 5.5 / 7.5 – Fanuc |
4.9 / 7.4 / 9.3 – Siemens |
Torque, cont./S2 10 min (Nm) | 3.5 / 11.8 | 26.3 / 35.8 – Mitsubishi |
23.5 / 35 / 47.7 – Fanuc |
27 / 40 / 52 – Siemens |
Spindle speed (rpm) | 12000 | 8000 (12000) |
Spindle – Option Power, cont./S2 10 min (kW) | 2.2 / 3.7 | 2.2 / 3.7 |
Spindle – Option Torque, cont./S2 10 min (Nm) | 3.5 / 11.8 | 3.5 / 11.8 |
Spindle – Option Spindle speed (rpm) | 15000 (20000 / 24000) | 15000 (20000 / 24000) |
Table Size (mm) | 520 × 330 | 600 × 400 (900 × 400) |
Table type: T-slot (No. × size × pitch) | 3 × 14 × 125 | 3 × 14 × 125 |
Table Load Capacity (kg) | 250 | 400 |
Pallet Size (mm) | 500 × 280 (M12 holes) | 550 × 380 (M12 holes) |
Pallet load capacity (kg) | 160 | 200 |
Pallet load height (mm) | 980 | 810 |
Pallet change time (sec) | 10 | 10 |
Tool change system type | Direct pick-up | Direct pick-up |

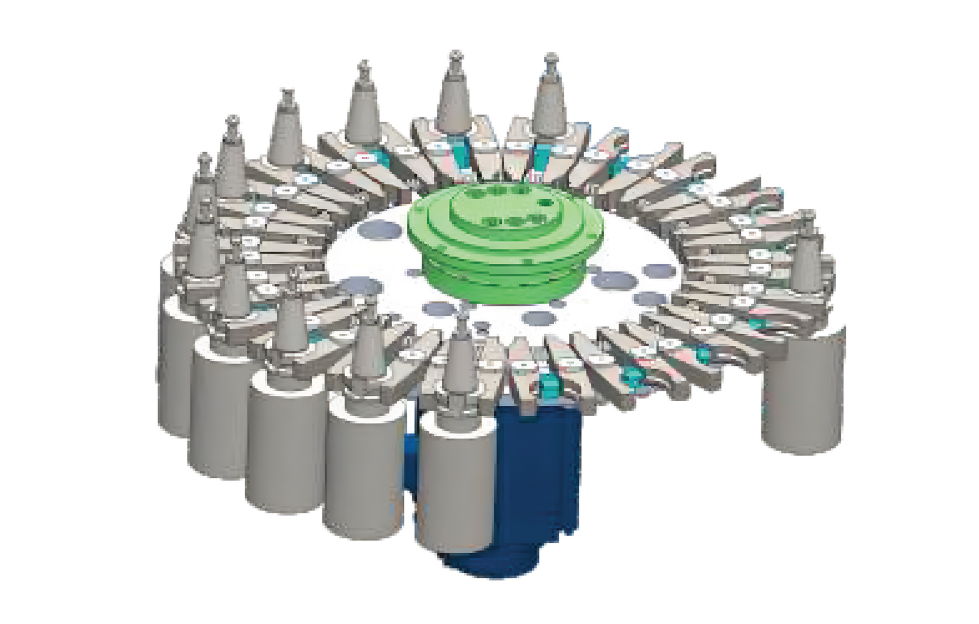

Tool storage capacity | Standard (Optional): 8 (20) | Standard (Optional): 22 (26) |
Pull stud type | MAS-403 P30T-1 | MAS-403 P30T-1 |
Max. tool dia. (AI pockets full / adj. pockets empty) (mm) | 70 | 80 / 140 |
Max. tool length (mm) | 150 | 300 |
Max. tool weight (kg) | 3 | 3.5 |
Tool to tool time (sec) | 2 | 2 |
Chip-to-chip time (C-C) (sec) | 4.4 | 3.9 |
Accuracy as per ISO 230-2
Positioning (mm) | 0.009 | 0.009 |
Accuracy as per ISO 230-2
Repeatability (mm) | 0.007 | 0.007 |
Floor space with APC (W × D) (mm × mm) | 995 × 3200 (1200 × 3750) | 1280 × 3650 (1455 × 4120) |
Machine height (mm) | 2500 | 2940 |
Basic machine weight with APC (kg) | 3500 (4000) | 4700 (5050) |
Total connected load (Basic Std machine) (kVA) | 17 | 25 |
Compressed air (bar) | 6 | 6 |
Power supply | 3 Phase 415 V, 50 Hz | 3 Phase 415 V, 50 Hz |
CNC system | Mitsubishi M80 | Mitsubishi M80 / Siemens 828D / Fanuc / Oi MF |
