Omega 3060 | Omega 3070 | Omega 3080 | Omega 30100 | Omega 4080 | Omega 40100
A robust, thermally stable structure, along with high rapid rates of 54/54/48 m/min for X/Y/Z Axis & directly coupled spindles which can reach rotation speeds of 12,000 revolutions per minute (optionally 24,000). And many more features make the vertical machining centre a flexible one, ensuring Precision and productivity.

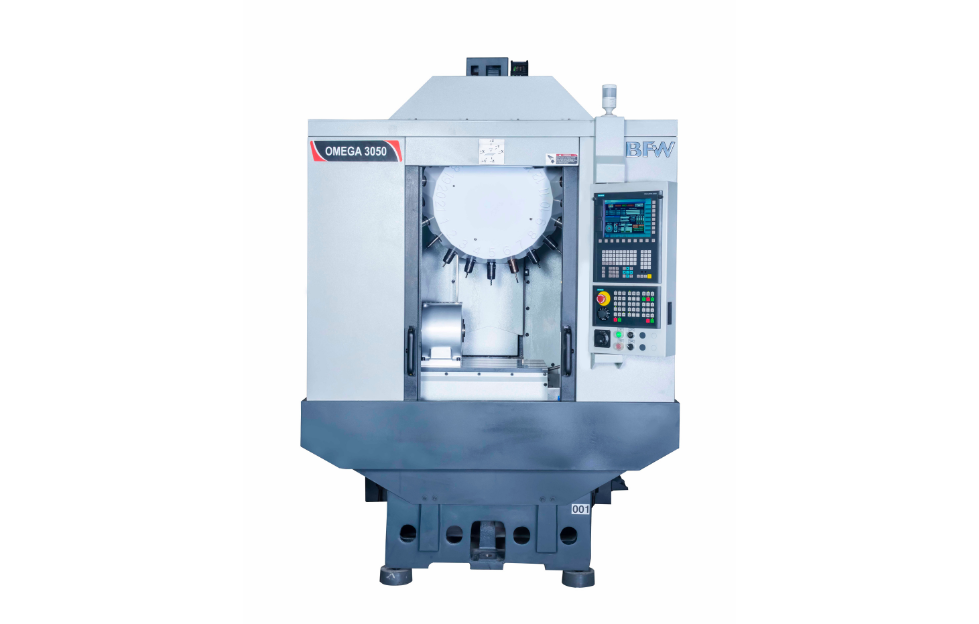

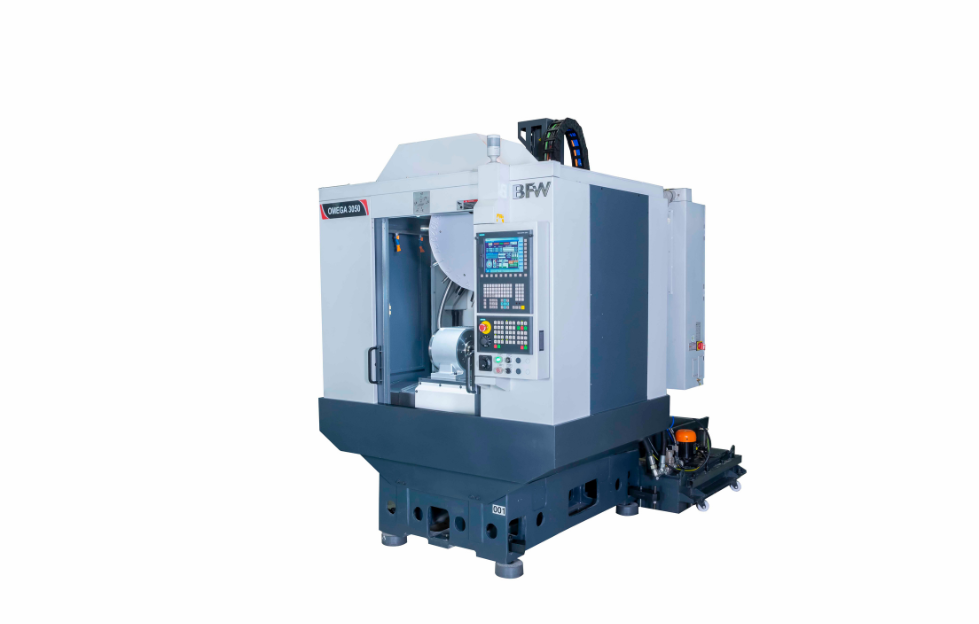

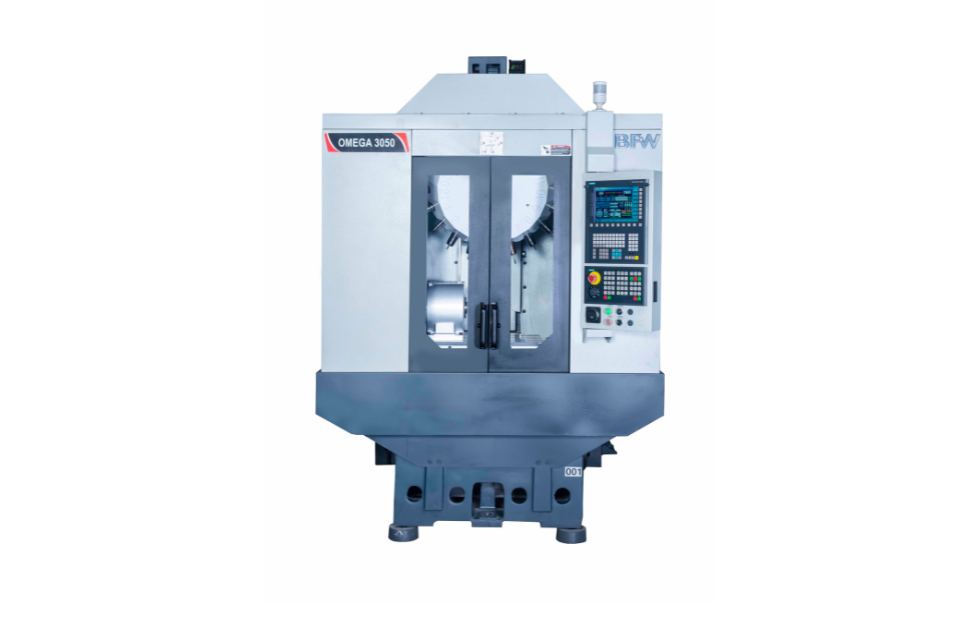

Vertical machine
Have Any Questions?
Let us tell you more about Omega. Feel free to reach out to us anytime.
Omega | 3060 | 3070 | 3080 | 30100 |
|---|---|---|---|---|
X Axis (mm) | 600 | 700 | 800 | 1000 |
Y Axis (mm) | 400 | 450 | 500 | 600 |
Z Axis (mm) | 350 | 350 | 420 | 500 |
Spindle Face to Table top min–max | 150 / 50 | 300 / 650 | 300 / 720 | 300 / 800 |
Table Size (mm) | 650 x 400 | 800 x 420 | 850 x 560 | 1000 x 500 |
Max Load (kg) | 300 | 300 | 350 | 500 |
Omega | 4080 | 40100 |
|---|---|---|
X Axis (mm) | 800 | 1000 |
Y Axis (mm) | 500 | 600 |
Z Axis (mm) | 420 | 500 |
Spindle Face to Table top min–max | 300 / 720 | 300 / 800 |
Table Size (mm) | 850 x 560 | 1000 x 500 |
Max Load (kg) | 350 | 500 |
XTRON Series is developed for high productivity, performance & ergonomic features.
Tailored solutions for machining large-sized components for Aerospace & Energy sectors or industries.
Precision and productivity ensured. We added more features providing top-level flexibility.
Heavy frame & innovative design support heavy cutting to produce a better surface finish.
Built with a Rigid cast iron structure and lower chip-to-chip time for high-volume production.
Mach is a futuristic, high productive, compact VMC for efficient machining of high volume small parts.
