What is a lathe? Learn how it works, key benefits, types, and more

The lathe has been a cornerstone of manufacturing for centuries, evolving alongside the industry itself. Its role spans from shaping simple parts to producing highly complex components with extreme precision. Today, lathes are found in everything from small workshops to massive production facilities, serving as a backbone of modern machining. Exploring how they work, their components, and their capabilities reveals why they continue to be indispensable in manufacturing.

What is a lathe?

A lathe is a machine tool that rotates a workpiece about its axis while a cutting tool removes material to create the desired shape. Unlike milling machines, where the tool rotates, the lathe keeps the tool stationary (or moves it linearly) while the workpiece spins.

Lathes are widely used for cylindrical parts, but with the right tooling and setup, they can also produce tapers, threads, grooves, and complex contours. In manufacturing, they are a cornerstone of precision machining, capable of holding tight tolerances and delivering consistent results across both prototype and high-volume production runs. Modern CNC lathes integrate automation, tool changers, and multi-axis control, enabling complex geometries to be produced in a single setup.

How a lathe works

All lathes operate on the principle of rotating the workpiece while a cutting tool removes material. The process typically involves four main stages:

1. Workholding – The workpiece is firmly secured in a chuck, collet, or between centers to maintain stability and accuracy. Proper workholding is critical to minimize vibration, ensure concentricity, and maintain dimensional tolerances throughout the machining process.
2. Rotation – A spindle motor drives the workpiece at a carefully selected speed, determined by factors such as material hardness, cutting tool geometry, and the desired surface finish. Spindle speed directly affects chip formation, heat generation, and tool life.
3. Tool engagement – A cutting tool, mounted on a tool post (manual lathes) or turret (CNC lathes), is fed into the rotating workpiece. The tool path and depth of cut define the final geometry, whether it’s a simple turning operation or a complex profile.
4. Controlled motion – In manual lathes, feed rate and cutting depth are adjusted by the operator, often relying on experience to optimize performance. In CNC lathes, these movements are controlled by a programmed sequence, enabling precise coordination between spindle rotation, tool positioning, and feed motion for high repeatability and accuracy.

Key parts of a lathe

While designs vary between manual, CNC, horizontal, and vertical configurations, most lathes share the following essential components:

• Bed – The heavy, rigid base of the machine that supports all other components. It is precision-machined to maintain alignment and stability, absorbing cutting forces and minimizing vibration during operation.
• Headstock – Located at one end of the bed, it contains the spindle, bearings, and drive system (belt, gear, or direct drive) that provide the rotational power for the workpiece. The headstock often includes gearboxes for spindle speed selection.
• Spindle – The precision-machined rotating shaft driven by the headstock’s motor. It holds the workholding device (such as a chuck or collet) and is designed to run with minimal runout to maintain accuracy during precision cutting.
• Chuck or collet – The workholding device that securely grips the workpiece. Chucks are versatile and can hold various shapes, while collets provide superior concentricity for high-precision machining. Hydraulic or pneumatic versions are common in CNC setups for faster clamping.
• Tailstock – Positioned opposite the headstock, it slides along the bed and supports long or slender workpieces using a live center or dead center. It can also hold drilling or reaming tools for operations along the workpiece axis.
• Carriage – The assembly that moves the cutting tool along the bed’s length (longitudinal feed) and across the workpiece (cross feed). It typically includes the cross slide for lateral movement and the compound rest for angular positioning and fine adjustments.
• Turret (CNC lathes) – A rotating tool holder that allows quick changes between multiple cutting tools without manual intervention. CNC turrets can index automatically, reducing setup time and enabling complex multi-step machining in one cycle.
• Control system (CNC lathes) – The computer interface and electronic control units that read and execute G-code programs. The control system manages spindle speed, feed rates, tool changes, coolant delivery, and axis movement with high precision.

Types of lathes

Lathes are built in various configurations to suit different production requirements, part geometries, and material properties. The primary types used in manufacturing include:

• Engine lathe – The most common manual lathe, widely used for general-purpose turning in toolrooms, maintenance departments, and small-scale manufacturing. It can perform a variety of operations such as turning, facing, threading, boring, and taper cutting. While slower and more labor-intensive than CNC machines, engine lathes are valued for their flexibility in low-volume and prototype work, especially when setup time is minimal compared to programming time.
• Turret lathe – Designed for medium- to high-volume production, the turret lathe features a rotating turret that can hold multiple cutting tools at once. This allows rapid tool changes without stopping the spindle, significantly reducing cycle times. Turret lathes were a major step toward automation before CNC technology became widespread and are still used where repetitive, high-accuracy parts are required.

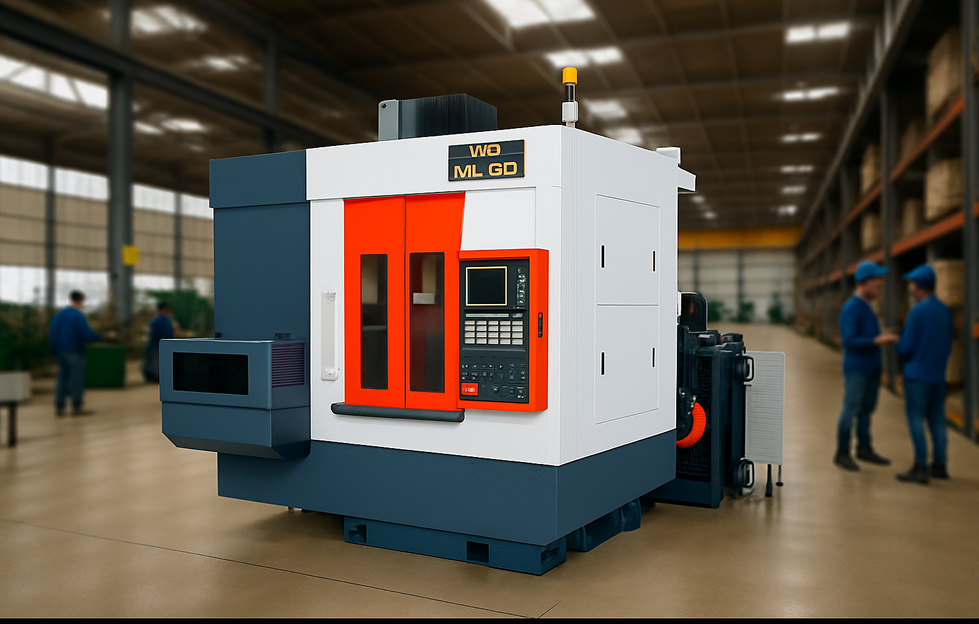

• CNC turning center – A fully automated, computer-controlled lathe capable of executing precise, repeatable machining cycles on various materials, including metal and wood. CNC turning centers often have multi-axis control (such as C-axis and Y-axis), powered tool holders for milling and drilling, automatic tool changers, and sometimes sub-spindles for complete part machining without operator intervention. They are the backbone of modern high-volume precision manufacturing.
• Vertical lathe (VTL) – A lathe with a vertically oriented spindle, best suited for large, heavy, or awkwardly shaped workpieces that are difficult to hold horizontally. VTLs are common in industries like aerospace, power generation, and heavy equipment manufacturing for machining components such as turbine casings, flywheels, and gear blanks. The vertical configuration uses gravity to stabilize the workpiece and simplify handling.
• Horizontal lathe – The standard lathe configuration, with a horizontally oriented spindle parallel to the floor. This design offers versatility, handling small precision parts, large shafts, and everything in between. Horizontal lathes range from small bench-top models to massive industrial machines capable of turning multi-meter-long components.
• Multitasking lathe – Also known as mill-turn machines, these combine turning, milling, drilling, tapping, and sometimes grinding in a single setup. By eliminating part transfers between machines, multitasking lathes reduce production time, improve accuracy by avoiding re-clamping errors, and streamline workflow for complex parts. They are commonly used in aerospace, medical device manufacturing, and precision engineering.
• Special-purpose lathe – Custom-designed machines optimized for specific manufacturing tasks such as crankshaft turning, camshaft machining, or optical lens shaping. These machines are tailored for maximum efficiency in their specialized operations and may include unique workholding systems, tooling arrangements, or motion controls not found on standard lathes.

Types of lathe operations

Lathes are capable of performing a wide range of machining operations, from basic surface shaping to complex profiling. The most common operations include:

• Turning – The primary lathe operation where a single-point cutting tool removes material along the length of a rotating workpiece to produce a cylindrical surface. Turning can be external (outer diameter) or internal (boring) and is used to bring a workpiece to its final diameter with the desired surface finish.
• Facing – Machining the end of the workpiece to create a flat surface perpendicular to its axis. Facing is often done at the start of a job to prepare a reference surface or at the end to achieve a precise overall length.
• Boring – Enlarging or finishing an existing hole inside the workpiece. Performed with a single-point boring tool, boring ensures high concentricity and surface finish in internal diameters, often following a drilling operation.
• Drilling – Using a drill bit mounted in the tailstock (manual lathes) or turret (CNC lathes) to create a hole along the workpiece’s axis. Drilling on a lathe ensures alignment between the hole and the part’s rotational axis.
• Parting (cut-off) – Using a narrow cutting tool to sever the finished part from the raw stock or to create grooves. Parting requires careful control of feed rate and coolant to avoid tool breakage and surface defects.
• Grooving – Cutting a recess or groove into the outer or inner surface of the workpiece. Grooves can serve functional purposes, such as accommodating retaining rings or O-rings, or be purely decorative.
• Threading – Producing helical grooves on the outer or inner surface of a workpiece using a threading tool or tap/die. On CNC lathes, threading is synchronized between spindle rotation and tool movement for precision pitch control.
• Knurling – Impressing a patterned texture onto the surface of a workpiece using a knurling tool. Knurling improves grip on handles, knobs, and other components and can also serve decorative purposes.
• Taper turning – Machining a surface that gradually changes in diameter along its length. This is achieved by offsetting the tailstock (manual lathes), swiveling the compound rest, or using programmed toolpaths on a CNC lathe.
• Reaming – A finishing operation performed with a reamer to bring a drilled or bored hole to a precise diameter with improved surface finish. Typically used for tight-tolerance holes in precision assemblies.
• Chamfering – Cutting a beveled edge at the end of a workpiece to remove sharp corners, facilitate assembly, or improve aesthetics. Chamfers can be functional (e.g., easing a part into a mating component) or decorative.
• Form turning – Using a specially shaped cutting tool to produce complex profiles in a single pass. This method is efficient for repeated production of identical contours, such as fillets, radii, or ornamental shapes.

Conclusion

Whether used for prototyping or large-scale production, lathes deliver unmatched precision, repeatability, and versatility in machining. Their wide range of configurations and operations allows manufacturers to produce everything from simple shafts to intricate multi-featured components. As manufacturing technology advances, modern CNC lathes continue to integrate automation and multi-axis capabilities, reducing cycle times and improving accuracy. For any engineer or machinist, mastering lathe fundamentals is not just a skill but a core competency in precision manufacturing.
