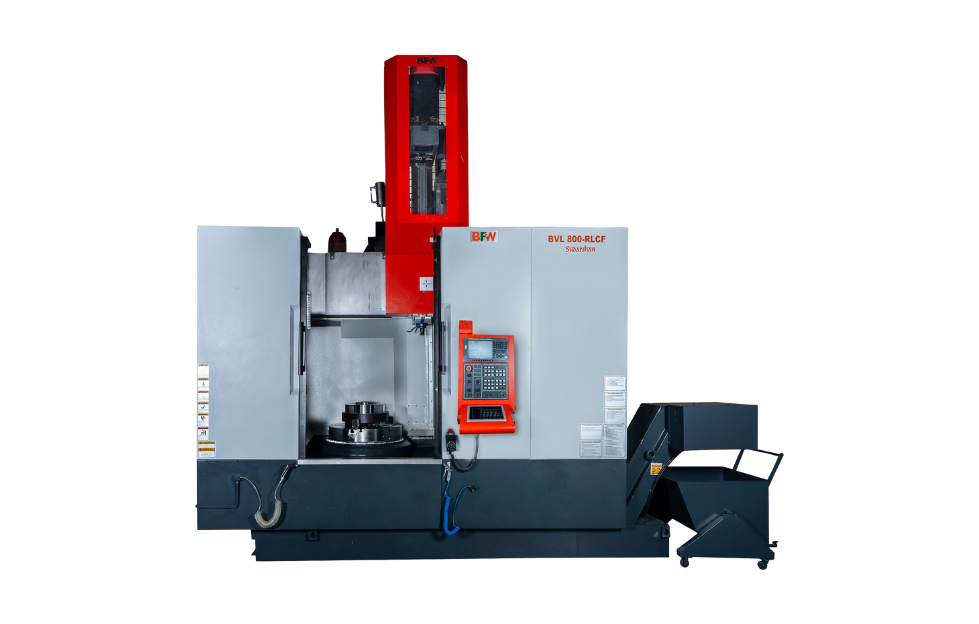

BFW Vertical Turning machines have been trademarked as Sudarshan series. With high speed, greater flexibility & rigidity BFW Sudarshan series proved as a true revolving profits partner in the shopfloor.

• 220 square RAM with BT 50 taper for tool clamping
• AC unit for electrical cabinet
• Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
• Hydraulic counterbalance for RAM
• Mounting pads with leveling screws
• Gear table spindle supported by bearings with a circulating Oil lubrication system
• C-axis for accurate indexing to carry out drilling & tapping functions with high resolution hollow shaft encoder & hydraulic
• Table clamping during cutting

• High Rigid Column Structure
• Continuous feed for Table (Cf Axis) by Dual Motor technology with Electronic Pre-load to ensure high accuracy interpolation
• Larger Size Cross Roller Bearing for Table Drive for High Axial, Radial and Tilting Load
• Heavy Duty Right Angle Head for Radial drilling, Keyway milling operations Etc.
• Hinged Steel Belt Conveyor for Steel Chips
• 12 tools servo-driven ATC for quick indexing
• Deep boring application up to 800 mm deep

• Live spindle on RAM-11/15 kW AC spindle motor with speed range – 50 to 2400 (220 Nm)
• C-axis for accurate indexing to carry out drilling & tapping functions with high resolution h0llow shaft encoder & hydraulic table
• Clamping during cutting
• CF axis for continuous interpolation of C-axis (rotation of table) & two linear axes ( X & Z axis) by random control of two spindle motors
• Scraper-type chip conveyor (for cast iron and aluminum chips) with chip trolley in-lieu of the chip tray
• Coolant thru spindle (pump cap-25 lpm & 16 bar pressure) hydro cyclone
• Linear scale
• Work piece measuring probe
