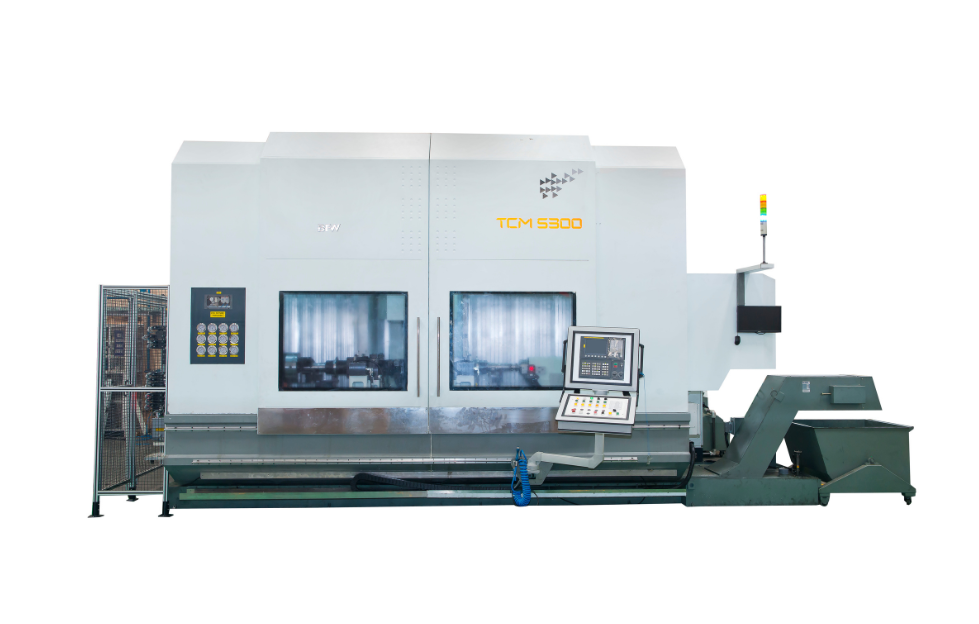

TCM Series

TCM 4100 | | TCM 4200 | TCM 4300 | TCM 4400 | TCM 4500 | TCM 5100 | TCM 5200 | TCM 5300 | TCM 5400 | TCM 5500

Heavy frame & innovative design support heavy cutting to produce better surface finish and provide long-term precision for accuracy. Tailor-made solutions for machining large-sized components for Aerospace & Off–road vehicle parts.

Watch TCM Series in Action!

Vertical machine

TCM

Download product brochure

Product enquiry

Have Any Questions?

Let us tell you more about TCM. Feel free to reach out to us anytime.

Unique Features

Heavily ribbed structure, base, and column
Wide range of flexibility for long fixed table
Modular structure
Extensive series range
High-quality roller guideways
Various spindle speeds available as an option

Specification Details

TCM	TCM 4100	TCM 4200	TCM 4300	TCM 4400
Table (mm)	1500 x 635	2500 x 635	3500 x 635	4500 x 625
Axes X / Y / Z (mm)	1000 / 600 / 700 (1000)	2000 / 600 / 700 (1000)	3000 / 600 / 700 (1000)	4000 / 600 / 700 (1000)
Spindle speed (rpm)	6000 / 8000	6000 / 8000	6000 / 8000	6000 / 8000
Spindle power Fanuc (kW)	7.5 / 11	7.5 / 11	7.5 / 11	7.5 / 11
Tool attachment (type)	BT40 (HSK A63)	BT40 (HSK A63)	BT40 (HSK A63)	BT40 (HSK A63)
Payload (kg)	1000	2000	3000	4000

TCM	TCM 4500	TCM 5100	TCM 5200	TCM 5300
Table (mm)	5500 x 635	1500 x 835	2500 x 853	3500 x 835
Axes X / Y / Z (mm)	5000 / 825 / 700 (1000)	1000 / 825 / 700 (1000)	2000 / 825 / 700 (1000)	3000 / 825 / 700 (1000)
Spindle speed (rpm)	6000 / 8000	6000	6000	6000
Spindle power Fanuc (kW)	7.5 / 11	22 / 26 (37 / 55)	22 / 26 (37 / 55)	22 / 26 (37 / 55)
Tool attachment (type)	BT40 (HSK A63)	BT50 (HSK A100)	BT50 (HSK A100)	BT50 (HSK A100)
Payload (kg)	5000	–	–	–

TCM	TCM 5400	TCM 5500
Table (mm)	–	–
Axes X / Y / Z (mm)	4000 / 825 / 700 (1000)	5000 / 825 / 700 (1000)
Spindle speed (rpm)	6000	6000
Spindle power Fanuc (kW)	22 / 26 (37 / 55)	22 / 26 (37 / 55)
Tool attachment (type)	BT50 (HSK A100)	BT50 (HSK A100)
Payload (kg)	–	–
