Series: Neo+ | Neo 2050
BFW’s HTL series of Neo turning centers are designed with unrivaled rigidity, high productivity, and reliability to enhance unmatched flexibility for a wide variety of part configurations. Developed to meet the requirements of job shops as well as mass production.
Have Any Questions?
Let us tell you more about Neo+. Feel free to reach out to us anytime.
Neo Series | Neo+ | Neo 2050 |
|---|---|---|
Mandrel size (mm) | 200 | 200 |
Maximum turning diameter (on mandrel, mm) | 300 | 330 |
Maximum turning diameter (between the points, mm) | 270 | 300 |
Axes X / Z (mm) | 165 / 400 | 185 / 525 |
Spindle nose | A2-6 | A2-6 |
Spindle speed (rpm) | 7.5 / 11 | 7.5 / 11 |
Spindle power (kW) | 7 / 10.5 | 9 / 11 |
Payload (kg) | 300 / 305 | 330 / 465 |
Designed with unrivaled rigidity, high productivity and reliability for a variety of part configurations.
Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.
To meet the requirements of heavy engineering industries for high-end solutions.
To meet the requirements of heavy engineering industries for high-end solutions.
Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.
Contact us online or join us at one of our events to explore potential partnerships and collaborations. Our custom solutions are manufactured using cutting-edge technologies and the latest methodologies.

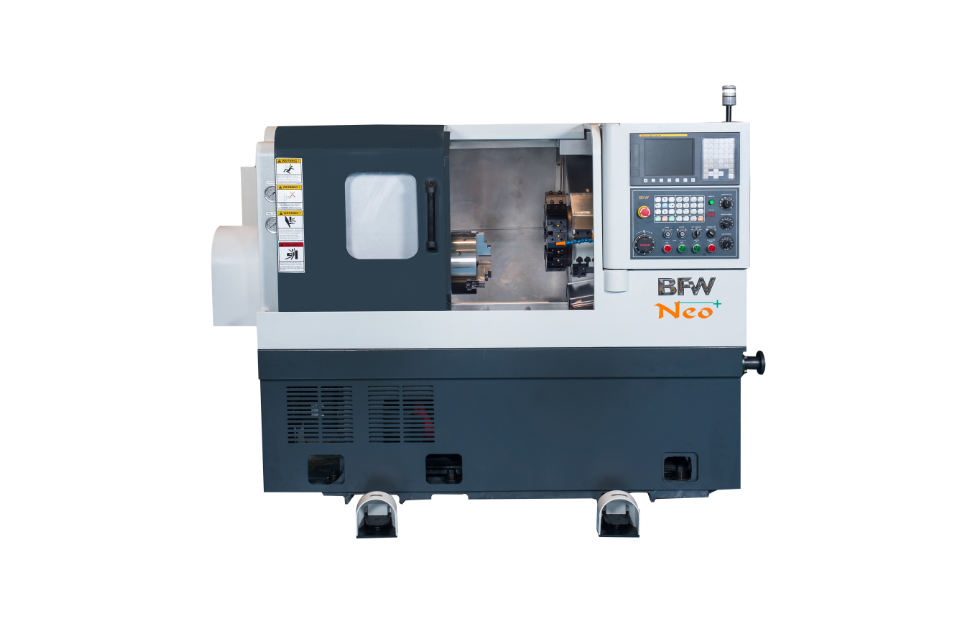

Neo+ is BFW Europe’s horizontal CNC turning center series designed with unrivaled rigidity, high productivity, and reliability for a wide variety of part configurations. Developed to meet the requirements of both job shops and mass production, Neo+ focuses on stable turning performance, repeatability, and practical automation readiness.
For buyers searching for a CNC horizontal lathe or horizontal turning center that can run consistently across shifts, Neo+ is built around a simple goal: deliver dependable turning results with a platform that is easy to operate, easy to automate, and economical to run.
Neo+ uses precision LM guideways and high precision ball screws for the X and Z axes to support controlled motion, stable cutting, and repeatable results in day-to-day production.
Neo+ is enabled for automation and can be configured for bar work, part handling, and robotics-based loading. This makes it a practical fit for production environments where output depends on reducing manual handling and keeping non-cut time low.
Neo+ highlights an ergonomically designed operator panel and standard shopfloor essentials that support smooth daily operation in real manufacturing conditions.
Neo+ is described as a first-of-its-kind platform in India with a distinctive feature offering total isolation of tramp oil from coolant, intended to support better accuracy and lower running cost.
Neo+ supports multiple CNC control options, including Fanuc, Siemens, and Mitsubishi, making it easier to align the machine with existing shopfloor standards, training, and programming workflows.
Neo+ includes a production-ready standard configuration designed to support stable turning, repeatability, and day-to-day reliability.
Ball type LM guideways (Class H)
Precise ball screws (Class 3)
Automatic centralized lubrication system
AC servo drives
Belt-driven spindle
Absolute encoders
Hydraulic power pack
Coolant tank cum chip tray
Rigid tapping and linear/circular interpolation capability
8-station hydraulic turret
3-jaw self-centering chuck with solid rotary cylinder
Tailstock with programmable quill
Operator door, tri-color lamp, machine alarm diagnostics, and energy-saving functions
AC for the electrical cabinet, tool display, machine lamp, mechanical tool kit, and leveling pads
Neo+ can be configured with options that remove common production bottlenecks such as chip handling, tool capacity limits, and manual part handling.
Chip conveyor for improved chip evacuation and cleaner continuous operation
12-station hydraulic turret for higher tool capacity and fewer manual tool swaps
Workholding options such as 2- and 4-jaw self-centering chucks and collet chuck setups
Auto door for smoother production routines and automation-friendly workflow
Bar feeder system and part catcher for bar work and higher spindle utilization
Tool touch probe and work probe options to support faster setup routines and more repeatable offsets
Hollow cylinder option for specific workholding/part handling needs
Gantry or robotics automation options for production cell integration
Tooled-up solutions for faster deployment into production
Industry 4.0 integrated system (IRIS) option for production monitoring and shopfloor integration
Neo+ is designed for medium-duty turning work across job shop and production environments, especially where repeatability and automation readiness matter.
Typical part examples associated with the Neo platform include:
Cylinder flanges
Differential case features and related turned components
Pulleys
Nozzles
Compressor rotor components
Hub adapters
Hydraulic fittings
Wheel hub components
Neo+ is a horizontal CNC turning center series built for stable turning performance, repeatable accuracy, and production-ready workflows. With precision motion components, automation capability, control flexibility, and practical options for bar feeding, probing, and robotics integration, Neo+ is designed to support both job shops and mass production environments.
If you are evaluating a CNC horizontal lathe for reliable turning, flexible part configurations, and a platform that can scale into automated production, Neo+ is built to support that manufacturing reality.
