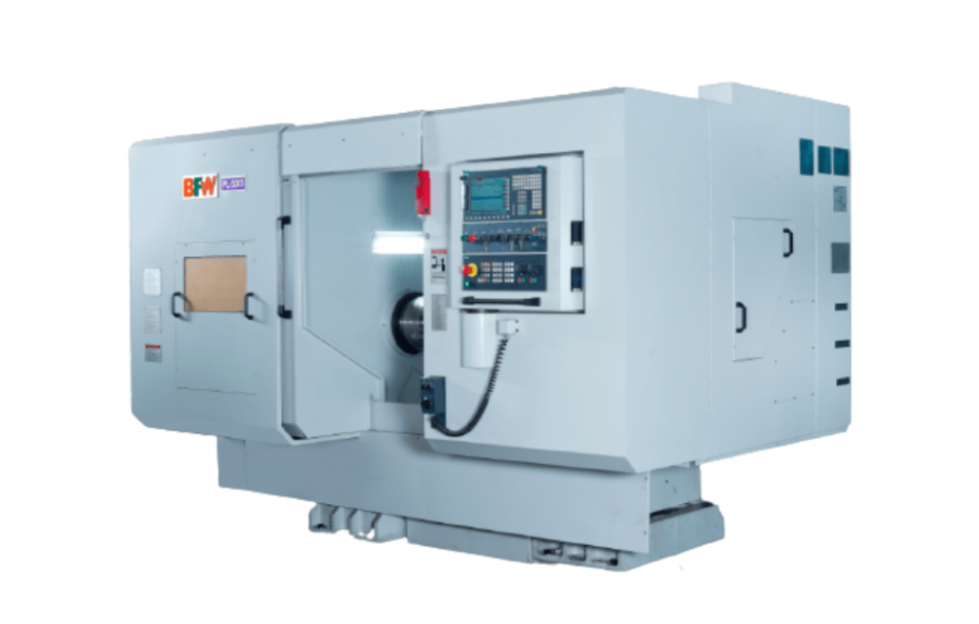

PL 500 CNC Machine: Heavy-Duty Precision Engineering

PL 500

PL 500 S/R

Meets the requirement of heavy engineering industries for High-end solutions such as Earth Moving, Automobile, Agriculture, and Construction. Built with integrated guide-ways and ensure greater accuracy & vibration damping characteristics.

Watch PL 500 in Action!

PL 500

Download product brochure

Product enquiry

Have Any Questions?

Let us tell you more about PL 500. Feel free to reach out to us anytime.

Standard Features

Extensive series range, turning lengths 1000, 1500, 2000, 3000, 4000 and 4500 mm in 2 center heights and several configurations.
Built on the PL600 platform with same bed, headstock, tailstock, Z, and X axes, so all special features specified in PL600U are applicable here
Spindle C axis position feedback is by hollow shaft encoder.
In case of large spindle bore 180 – 230 mm, the feedback is by normal encoder with timing pulleys and belt
Hydraulic power pack with float level switch

Unique Features

Single-piece cast iron bed
Integral hardened and ground guide ways
In built geared head stock
High rigidity Hydraulic clamping turret
Servo live tool turret (Optional)
C-Axis and Live tools (Optional)
Easy accessibility to turret to tool change

Optional Features

Optional higher power Fanuc 30/37 or Siemens 28/34 kW
Optional spindle nose A2-15 with larger front bearings for chucks of 630 mm dia.
CNC systems from Fanuc and Siemens on request
Machine color as per customer requirement
Special turret disc suitable for tool shanks of 40 ht x 32 width and up to 110 mm overhang for crankshaft journal turning applications

Specification Details

PL 500 S	700 ABC	1000 ABC	1500 ABC
Mandrel size (mm)	250 / 315	250 / 315	250 / 315
Maximum turning diameter (on mandrel, mm)	480	480	480
Maximum turning diameter (between the points, mm)	420	420	420
Axes X / Z (mm)	270 / 800	270 / 1080	270 / 1080
Spindle nose	A2-8	A2-8	A2-8
Spindle power – Fanuc (kW)	22	22	22
Spindle power – Siemens (kW)	17 / 22	17 / 22	17 / 22
Turning tool power (kW)	NA	NA	NA
Max. envelope volume (diameter × length, mm)	400 / 700	400 / 1000	400 / 1500

PL 500 R	700 ABC	1000 ABC	1500 ABC
Mandrel size (mm)	50 / 63	50 / 63	50 / 63
Maximum turning diameter (on mandrel, mm)	400	400	400
Maximum turning diameter (between the points, mm)	420	420	420
Axes X / Z (mm)	270 / 790	280 / 1070	280 / 1590
Spindle nose	A2-8	A2-8	A2-8
Spindle power – Fanuc (kW)	22	22	22
Spindle power – Siemens (kW)	17 / 22	17 / 22	17 / 22
Turning tool power (kW)	3.7	3.7	3.7
Max. envelope volume (diameter × length, mm)	400 / 700	400 / 1000	400 / 1500

Other horizontal lathes

Neo+

Designed with unrivaled rigidity, high productivity and reliability for a variety of part configurations.

Helix

Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.

PL 500

To meet the requirements of heavy engineering industries for high-end solutions.

PL 600

To meet the requirements of heavy engineering industries for high-end solutions.

Helix Y

Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.
