Pl 600 U/UR/Y : PL 600 - 1000 ABC | PL 600 - 1500 ABC | PL 600 - 2000 ABC | PL 600 - 3000 ABC
Engineered for heavy industries like earthmoving, automobile, agriculture, and construction, it integrates guideways for accuracy and vibration damping, ensures rigidity and superior cutting of molded parts, and provides user-friendly automation to enhance overall machining performance.
Have Any Questions?
Let us tell you more about PL 600. Feel free to reach out to us anytime.
PL 600 U/UR | 1000 ABC | 1500 ABC | 2000 ABC |
|---|---|---|---|
Mandrel size (mm) | A2-11 (500) / A2-15 (630) | A2-11 (500) / A2-15 (630) | A2-11 (500) / A2-15 (630) |
Maximum turning diameter (on mandrel, mm) | 630 | 630 | 630 |
Maximum turning diameter (between the points, mm) | 460 | 460 | 460 |
Axis X / (PL600 U/L) (mm) | 415 / 1100 | 415 / 1600 | 415 / 2140 |
Axis X/Z (PL600 UR) (mm) | 415 / 1100 | 415 / 1600 | 415 / 2120 |
Axes X / Y / Z (mm) | NA | NA | NA |
Spindle nose (option) | A2-1 (A2-15) | A2-1 (A2-15) | A2-1 (A2-15) |
Spindle power (kW) | 22 / 26 | 22 / 26 | 22 / 26 |
Turning tool power (kW) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) |
Max. envelope volume (diameter × length, mm) | 460 / 1000 | 460 / 1500 | 460 / 2000 |
PL 600 U/UR | 3000 ABC | 4000 ABC | 4500 ABC |
|---|---|---|---|
Mandrel size (mm) | A2-11 (500) / A2-15 (630) | A2-11 (500) / A2-15 (630) | A2-11 (500) / A2-15 (630) |
Maximum turning diameter (on mandrel, mm) | 630 | 630 | 610 |
Maximum turning diameter (between the points, mm) | 460 | 460 | 460 |
Axis X / (PL600 U/L) (mm) | 415 / 3100 | 415 / 4100 | 415 / 4600 |
Axis X/Z (PL600 UR) (mm) | 415 / 3100 | 415 / 4100 | 415 / 6620 |
Axes X / Y / Z (mm) | NA | NA | NA |
Spindle nose (option) | A2-1 (A2-15) | A2-1 (A2-15) | A2-1 (A2-15) |
Spindle power (kW) | 22 / 26 | 22 / 26 | 22 / 26 |
Turning tool power (kW) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) | 5.5 kW / 3200 rpm (applicable for PL 600/UR only) |
Max. envelope volume (diameter × length, mm) | 460 / 3000 | 460 / 4000 | 460 / 4500 |
PL 600 UR/Y | 1000 ABC | 2000 ABC | 3000 ABC |
|---|---|---|---|
Mandrel size (mm) | A2-11 (500) | A2-11 (500) | A2-11 (500) |
Maximum turning diameter (on mandrel, mm) | 500 | 500 | 500 |
Maximum turning diameter (between the points, mm) | 500 | 500 | 500 |
Axis X / (PL600 U/L) (mm) | 280 / 790 | 280 / 1070 | 280 / 1590 |
Axis X/Z (PL600 UR) (mm) | NA | NA | NA |
Axes X / Y / Z (mm) | 300 / 1180 / +/ – 75 | 300 / 1880 / +/ – 75 | 300 / 2180 / +/ – 75 |
Spindle nose (option) | A2-11 | A2-11 | A2-11 |
Spindle power (kW) | 22 / 26 | 22 / 26 | 22 / 26 |
Turning tool power (kW) | 5.5 / 7.5 kW / 3000 rpm | 5.5 / 7.5 kW / 3000 rpm | 5.5 / 7.5 kW / 3000 rpm |
Max. envelope volume (diameter × length, mm) | 500 / 1000 | 500 / 1500 | 500 / 2000 |
Designed with unrivaled rigidity, high productivity and reliability for a variety of part configurations.
Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.
To meet the requirements of heavy engineering industries for high-end solutions.
To meet the requirements of heavy engineering industries for high-end solutions.
Helix series features The single piece inclined bed and servo turret of BMT 65 solutions.
Contact us online or join us at one of our events to explore potential partnerships and collaborations. Our custom solutions are manufactured using cutting-edge technologies and the latest methodologies.

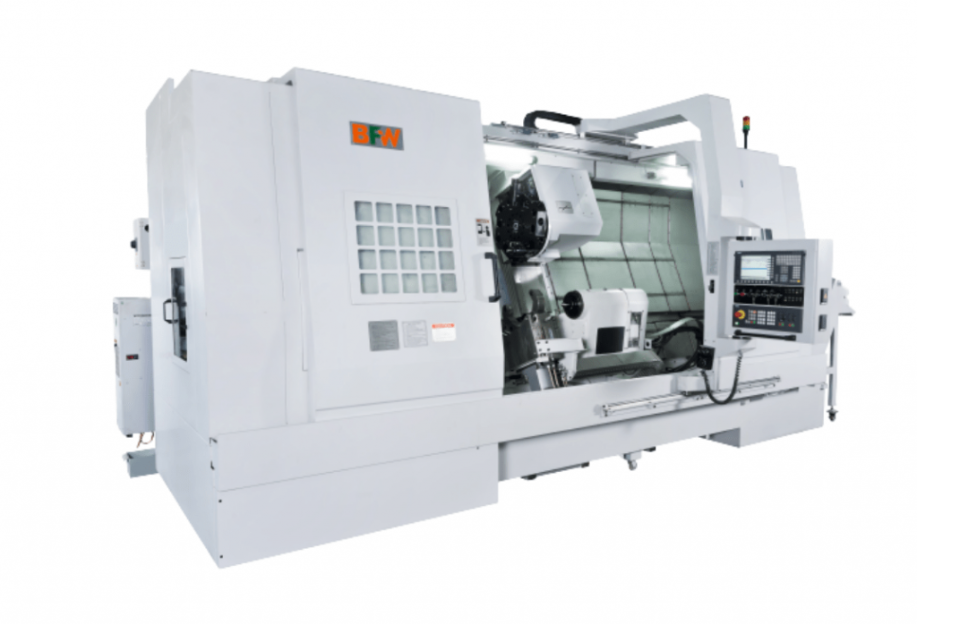

PL 600 is a high performance CNC horizontal turning center platform designed to meet the needs of heavy engineering industries that demand high-end machining solutions. Built for applications in earthmoving, automotive, agriculture, and construction, PL 600 focuses on rigidity, precision, and vibration damping performance for turning heavy and large-diameter components.
The PL 600 family includes turning and turn-mill capable configurations (PL 600 U, PL 600 UR, and PL 600 R-Y), giving manufacturers a platform that can be matched to pure turning work or expanded into multi-operation machining when C-axis and live tooling are required.
PL 600 is designed with an optimized structure to improve power utilization and minimise vibration during heavy-duty turning. This supports more stable cutting behaviour, better surface finish, and more predictable tool life—especially on large components and long-cycle jobs.
PL 600 is designed with integrated guideways (hardened and ground) to support higher precision and consistent performance over time. For production turning, this helps maintain repeatability across shifts and reduces the risk of instability as workloads increase.
PL 600 is offered across a wide series range with multiple turning lengths (including 1000, 1500, 2000, 3000, 4000, and 4500 mm) and multiple configurations. This makes it easier to select the right machining length and layout for long shafts, heavy components, and large work envelopes.
PL 600 emphasizes working ergonomics with wide access to the chuck zone, supporting easier loading and unloading of heavy parts. In high engineering environments, faster handling and better access often reduce changeover time and improve shopfloor safety.
PL 600 is available in configurations that support C-axis positioning and live tooling, enabling drilling, tapping, and milling operations to be completed on the same machine. This can reduce setups, improve feature-to-feature alignment, and increase overall productivity when parts require more than turning.
PL 600 is built on a platform approach, meaning the core machine architecture remains consistent while configurations are selected based on application.
Key standard elements include:
Monoblock cast iron bed and rugged cast iron structural parts for stability
Integrated hardened and ground guideways to support precision
Integrated geared headstock design for heavy-duty turning performance
Hydraulic power pack with level monitoring (float switch)
C-axis spindle positioning feedback via encoder (configuration-dependent)
High rigidity hydraulic turret designed for stable clamping and vibration-free machining
Easy access to the turret area to simplify tool changes and daily operation
PL 600 can be configured with options that match heavier cutting requirements, larger chuck sizes, and multi-operation machining needs.
Common configuration directions include:
Higher spindle power options (available in Fanuc or Siemens motor configurations) for more demanding cutting loads
Optional A2-15 spindle nose with larger front bearings to support larger chuck sizes (up to 630 mm)
CNC control selection on request (Fanuc or Siemens)
C-axis and live tooling options for turn-mill capability (configuration-dependent)
Special turret disc options for specific heavy turning applications such as crankshaft journal machining
PL 600 is designed for heavy engineering turning and turn-mill applications where rigidity and vibration damping support consistent output.
Typical part families and use cases include:
Large crankshafts and camshaft-type components
Rotor shafts and long shaft work
Truck axle beams and heavy automotive components
Pump bearings and heavy industrial components
General heavy engineering turning where long parts and stable cutting are required
PL 600 is a high performance horizontal turning center platform built for heavy engineering environments that require rigid cutting, vibration damping, and repeatable accuracy. With integrated guideways, a monoblock cast iron bed, production-ready ergonomics, and turn-mill capable configurations with C-axis and live tooling options, PL 600 is designed to support stable turning and scalable multi-process machining across industries such as earthmoving, automotive, agriculture, and construction.
